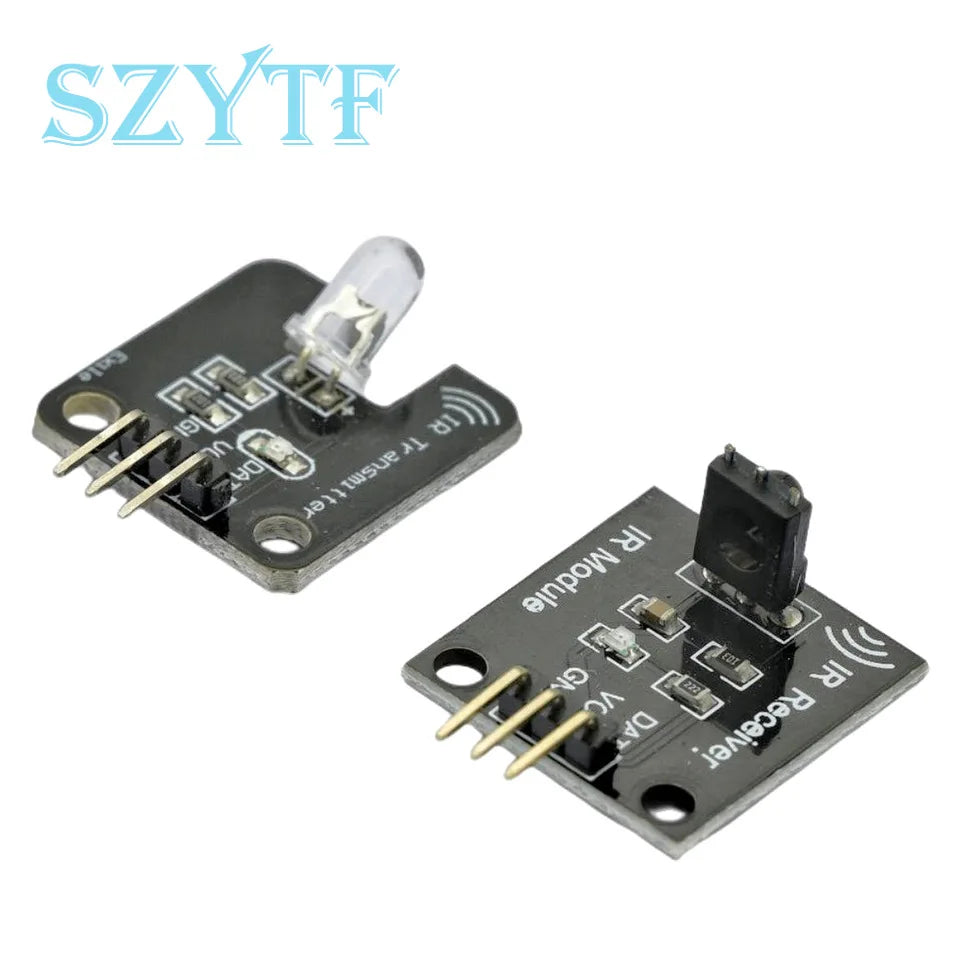

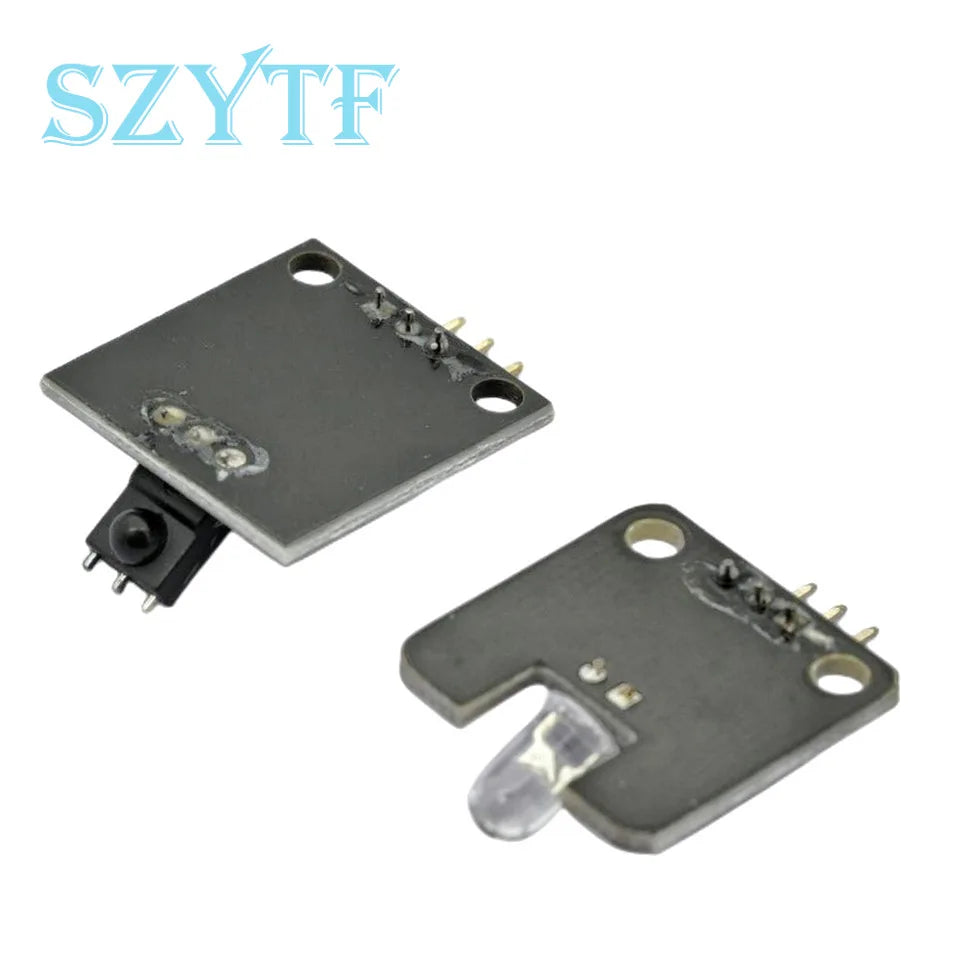

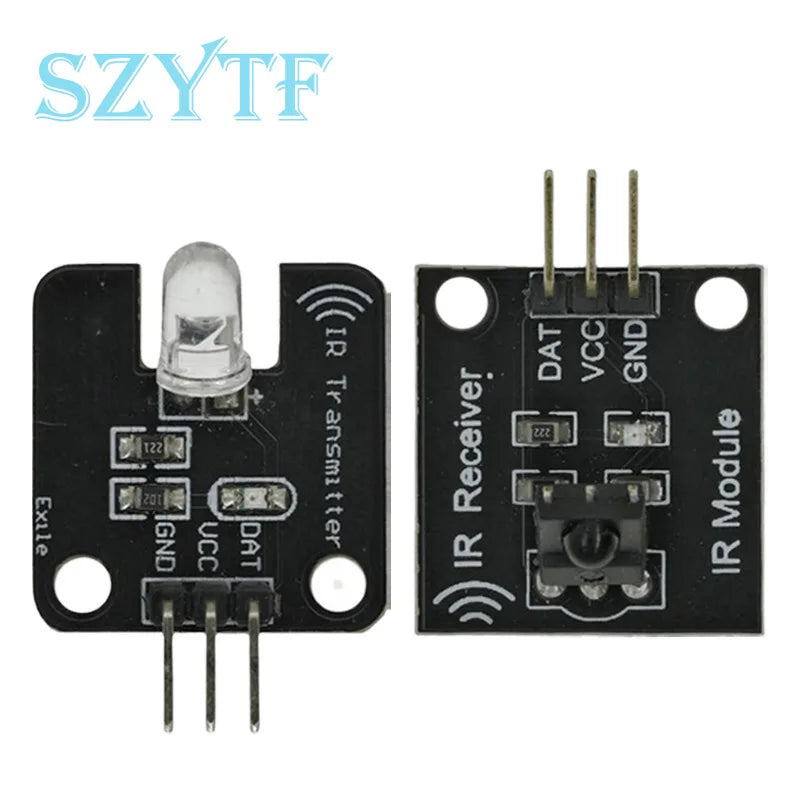

IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block

IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block

K100 ZMW
K100 ZMW
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Application: Computer



Brand Name: SZYT

Condition: New

Dissipation Power: n/a

Operating Temperature: n/a

Origin: Mainland China

Supply Voltage: n/a

Type: Module

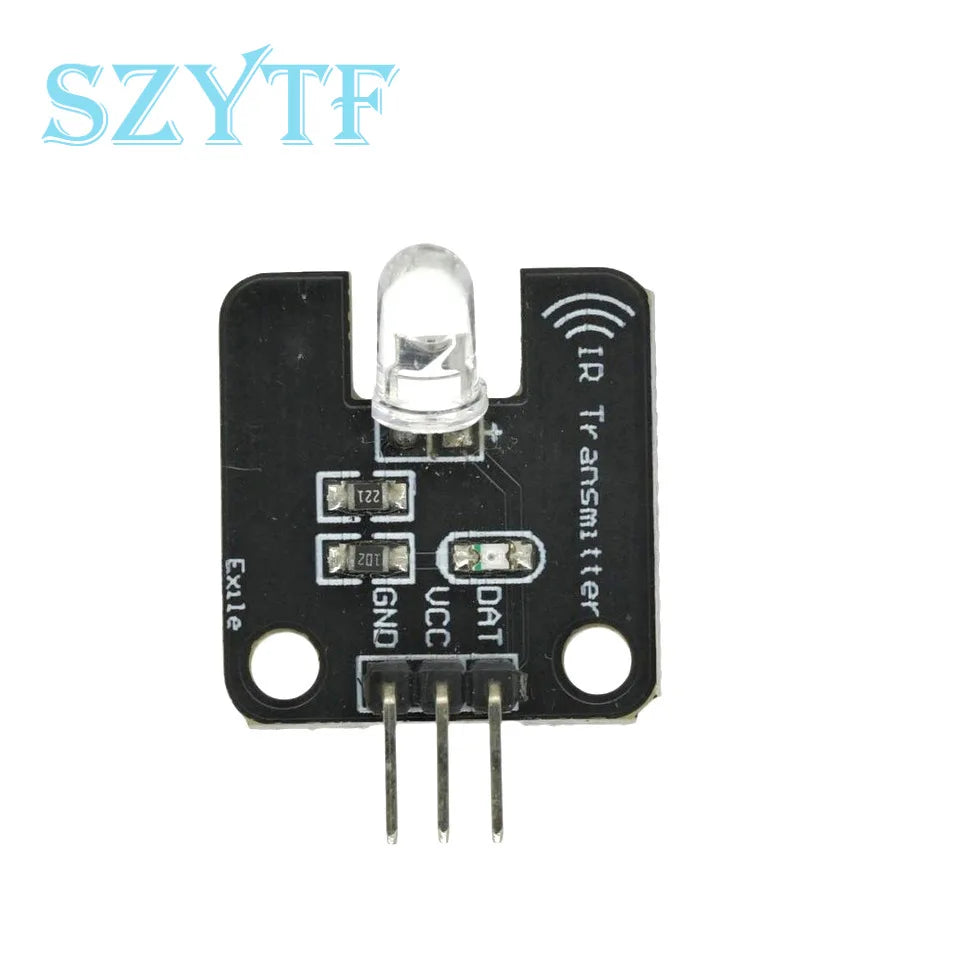

1. Infrared emission module:

  • Supply voltage: 5V

  • Working environment: -25~+85C

  • Storage temperature: - 30! 10OC

  • Wavelength: 940mm

  • Signal type: Digital signal

  • Infrared central wavelength: About 850nm-940nm

  • Infrared emission distance: About 1.3 m (5V 38khz)

  • Infrared emission Angle: About 20 degrees

  • Module weight: 1.5 g

  • Modules only store: 23.5 * 20.8 mm

  • Positioning hole size: 3mm

Wiring instructions:

  • DAT: indicates the digital output interface

  • VCC: positive terminal of the 5VDC power supply

  • GND: The negative pole of the 5VDC power supply

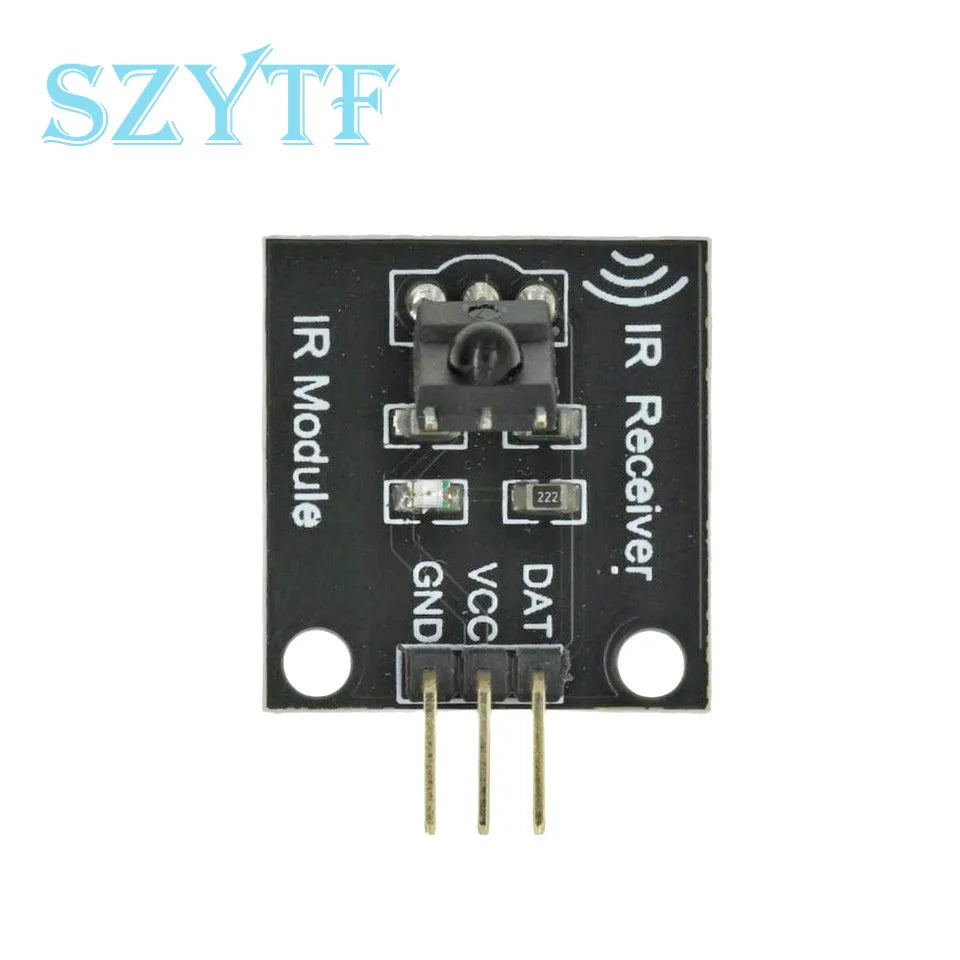

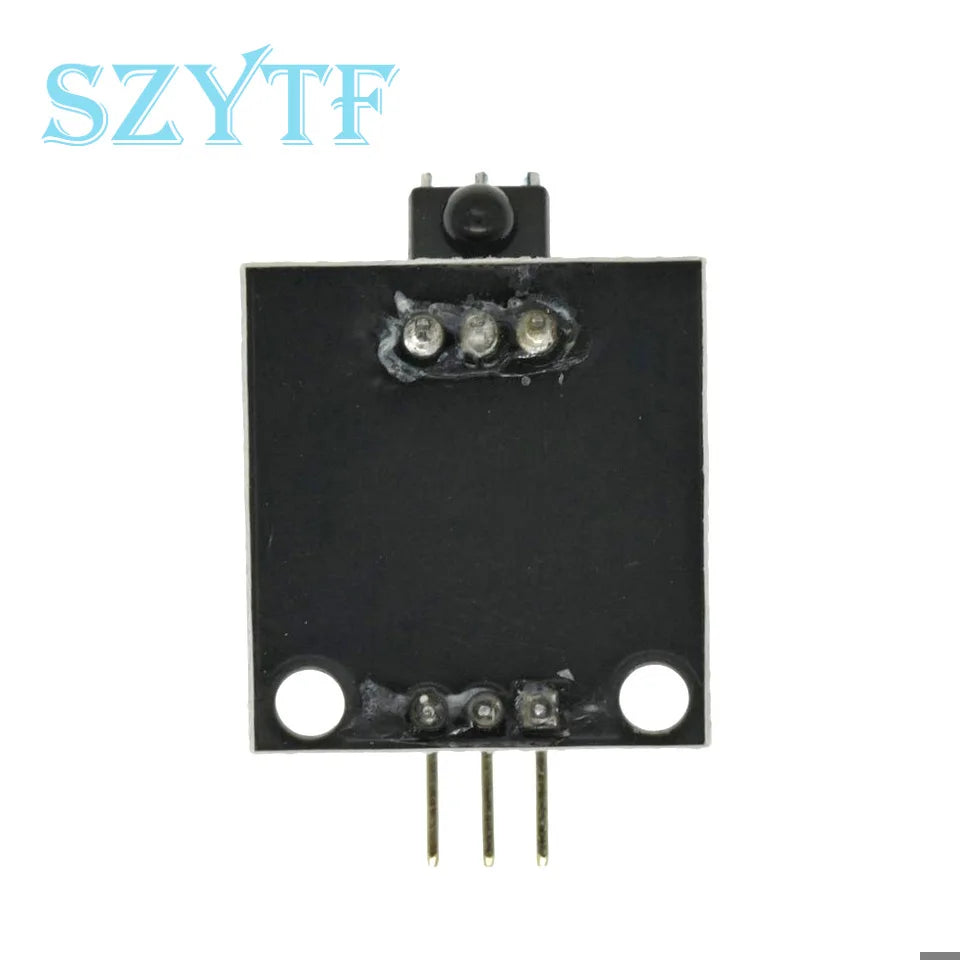

2. Infrared receiving module:

  • Supply voltage: 5V

  • Working environment: -25~+85C

  • Storage temperature: - 30! 100C

  • Carrier frequency: 940mm

  • Signal type: Digital signal

  • Infrared emission distance: About 10 meters

  • Infrared emission Angle: About 35 degrees

  • Module weight: 1.5 g

  • Modules only store: 23.5 * 20.8 mm

  • Positioning hole size: 3mm

Wiring instructions:

  • DAT: digital output interface

  • VCC: positive terminal of the 5VDC power supply

  • GND: The negative pole of the 5VDC power supply
